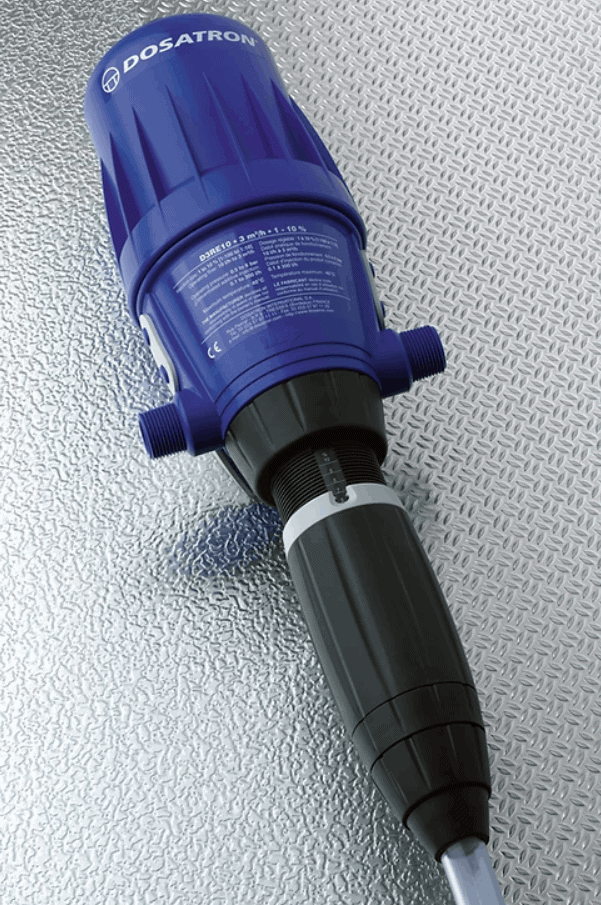

DOSATRON D3RE10 Coolant Mixing Unit




Installed directly in the water supply line, the DOSATRON D3RE10 Coolant Mixing Unit operates by using the flow of water as the power source and requires no wiring or electricity. The water activates the DOSATRON unit, which takes up the required percentage of coolant concentrate directly from the container and injects it into the water. Inside the DOSATRON, the concentrate is mixed with the water, and the water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the DOSATRON, regardless of variations in flow or pressure, which may occur in the main line.

DOSATRON D3RE10 has a dosage rate of between 1 and 10% and can operate at 0.5 to 6 bars of pressure. The package contains 1 DOSATRON unit, 1 wall bracket, 1 Suction tube and 1 Owner’s manual with all the information you need to install, set up and use your DOSATRON unit right away.

There are several other DOSATRON units available to work with specific applications. If you would like more information then please speak to our friendly sales team by visiting our contact page.

Additional information

Weight 20 kg
