Description

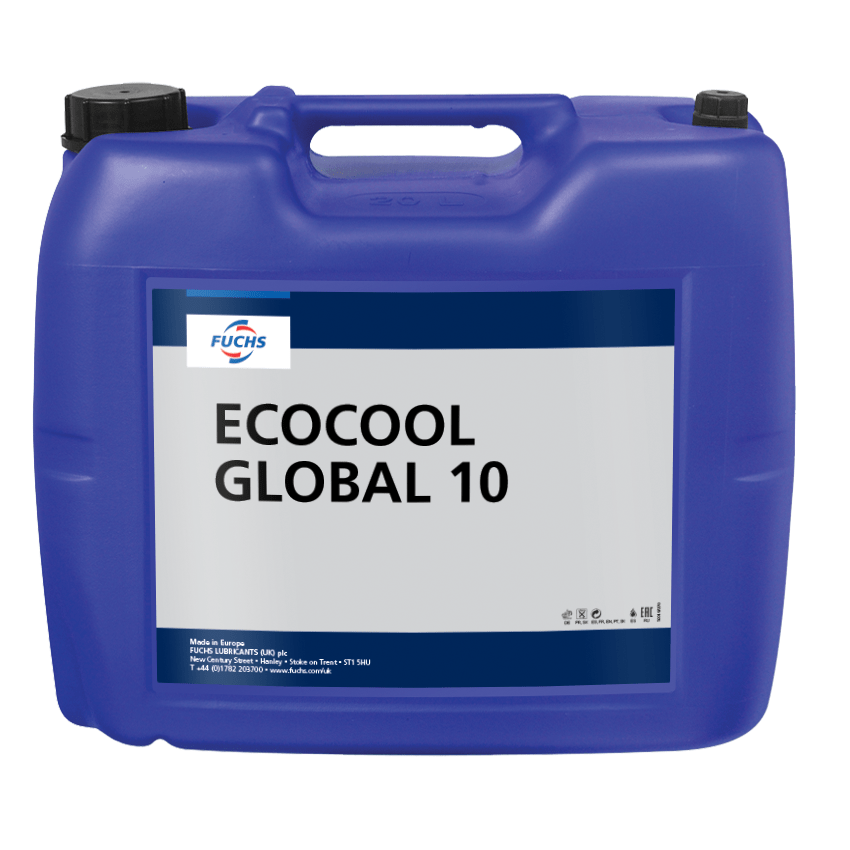

Fuchs Ecocool Global 10 is designed to meet the national chemical registries of the world’s major manufacturing markets while maintaining high performance in machining, foam control, hard water tolerance and pH stability. Ecocool Global 10 is suitable for machining a wide range of materials. It contains a novel lubricity package that makes it especially effective for aluminium and titanium machining. Studies on both aluminium drilling and titanium milling show dramatic improvements in tool life and metal removal rates.
Ecocool Global 10 from Fuchs Lubricants is a next generation water miscible coolant and employs raw materials that are intrinsically robust and provide long sump life. The emulsification system produces a tight stable emulsion that effectively tolerates tramp oils without producing objectionable residues.
Benefits of using Ecocool Global 10
- Contains lubricity enhancers
- Fine surface finishes/extended tool life
- Low foaming
- Suitable for high pressure coolant systems
- Multi-metal compatible
- One coolant can be used safely on a variety of materials
- Free of boron, chlorinated paraffin, silicone, secondary amines, triethanolamine, and formaldehyde donor biocides
- Meets the national chemical registries of Australia, Brazil, Canada, China, Europe, India, Indonesia, Israel, Japan, Malaysia, Mexico, Russia, Singapore, South Korea, South Africa, Taiwan, Thailand, Turkey, and USA
Approvals
ECOCOOL GLOBAL 10 meets the requirements of MBD PCS 4001 and Def Stan 91-70 and is fully approved to the following specifcations:
- Bombardier – BAMS 569-001 Class A
- Lockheed Martin – PS 22.02 – 11
- Safran Landing Systems – PCS-4001 ind A
Instructions for use
Fuchs Ecocool Global 10 is a water soluble cutting fluid and should be mixed with water for use. To ensure the optimum corrosion protection, we recommend a concentration of at least 5% however, the ultimate concentration must also be compatible with the materials involved. The optimum mixing temperature for water and concentrate is 15–20 °C (59-68°F). When mixing, always add coolant concentrate to water, not the other way around.
Remember, O.I.L – Oil In Last
Residues left by Ecocool Global 10 are readily cleaned from parts using mild alkaline cleaner solutions.
